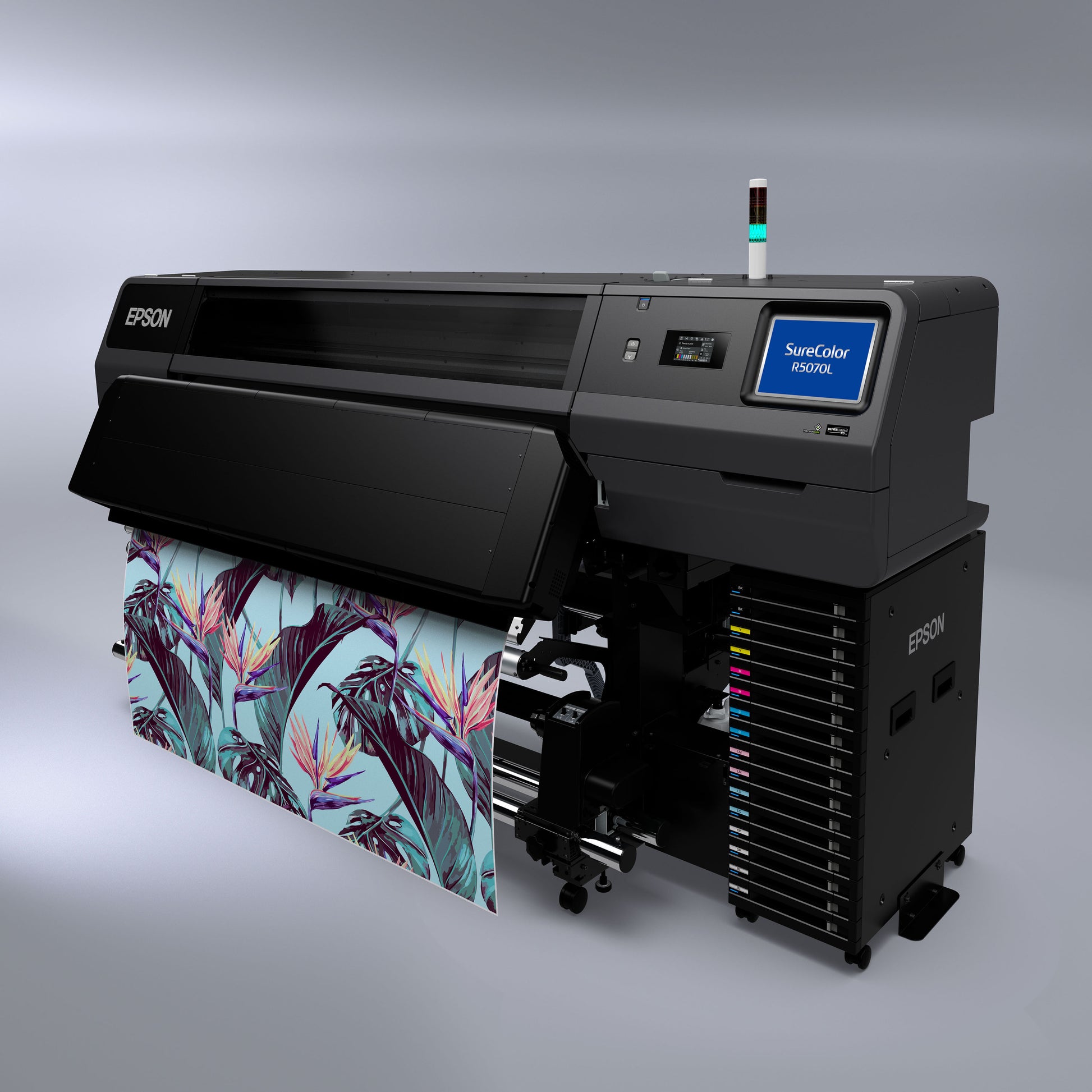

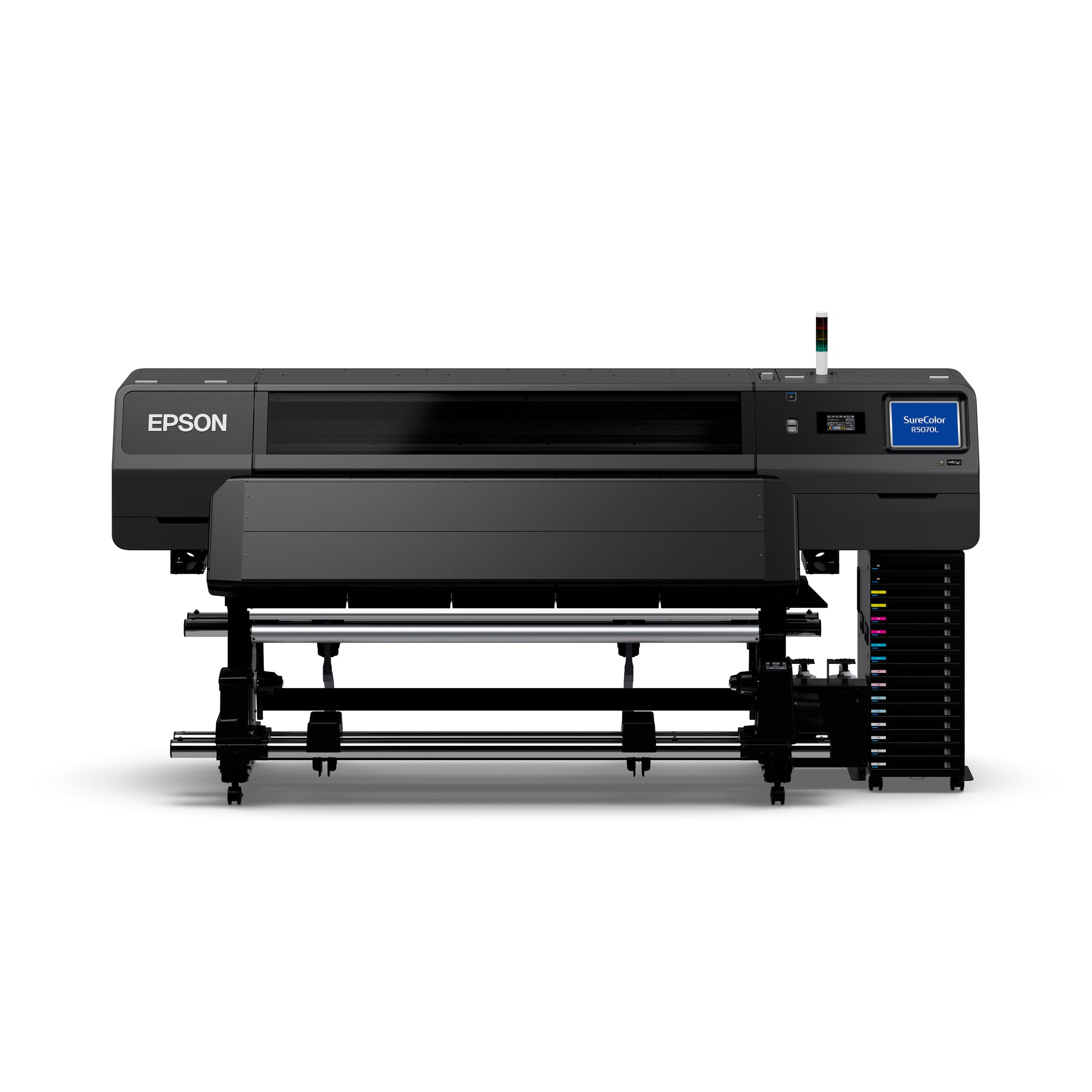

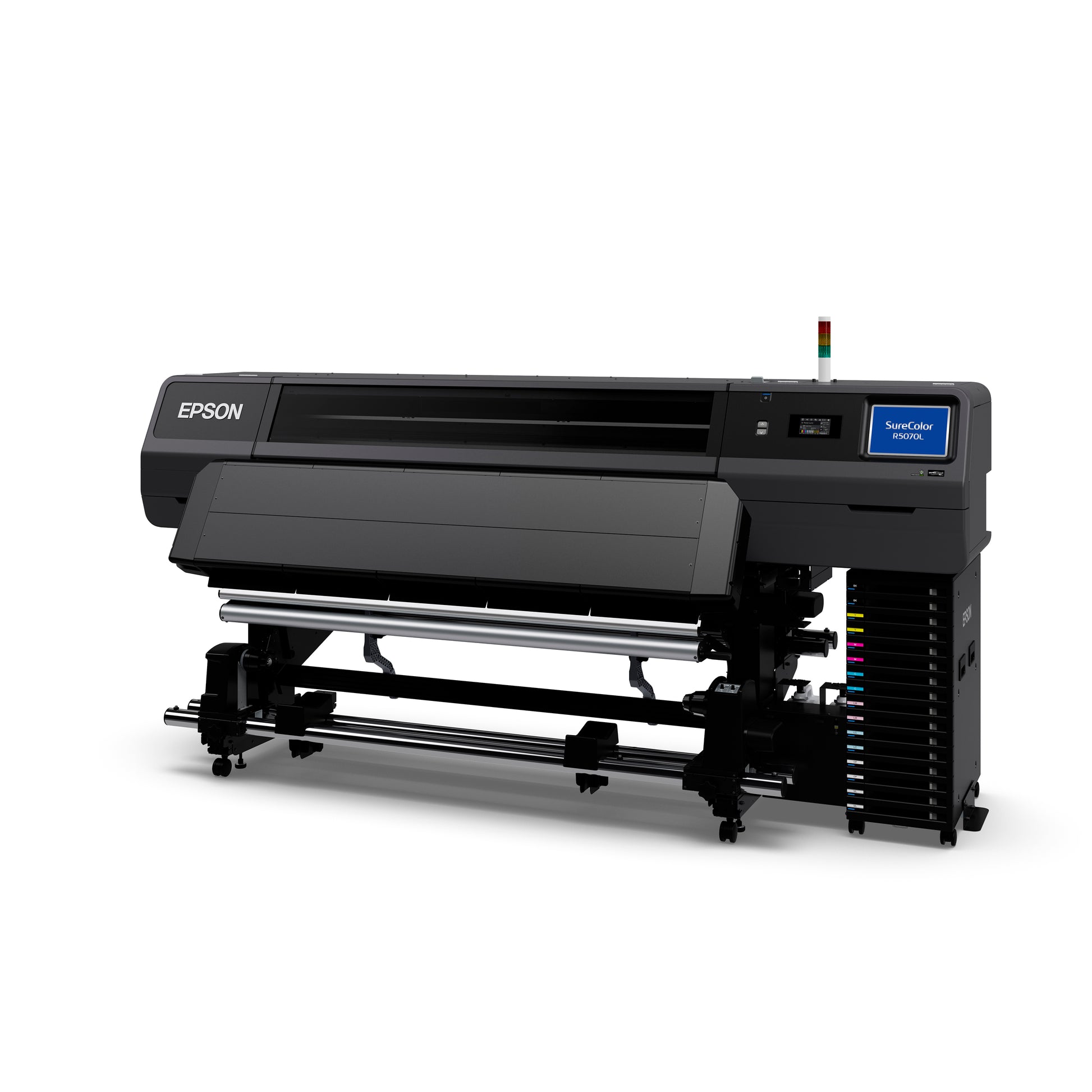

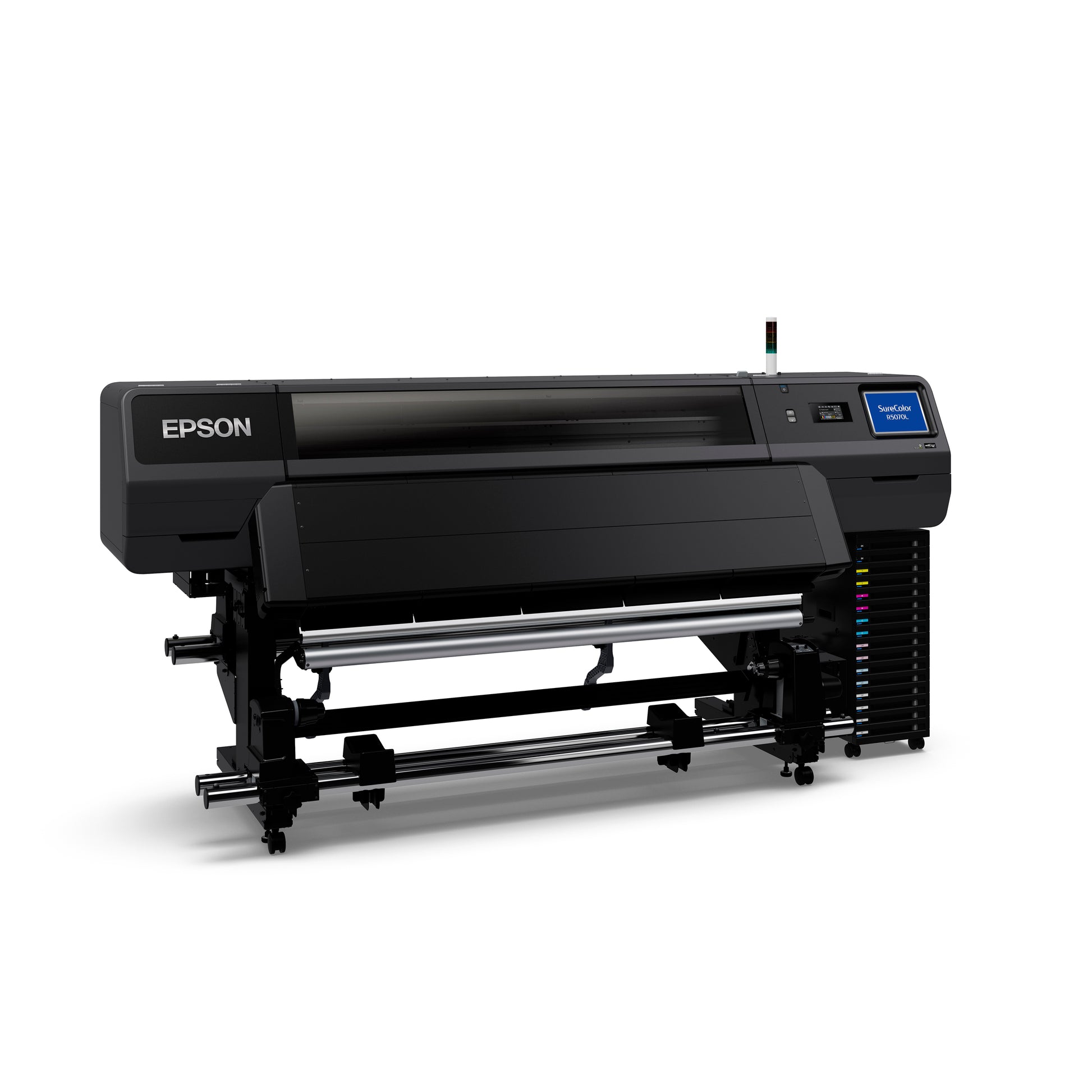

Epson SureColor R5070L 64" Roll-to-Roll Resin Signage Printer

Contact us for the latest promotions, pricing updates,
or to schedule a viewing of this product. (818) 955-8475

Maximize your print shop's productivity with the Epson SureColor R5070L, the industry’s first 64" roll-to-roll signage printer featuring versatile resin ink technology. Designed for high-volume operations, this powerful printer delivers professional-quality prints on vinyl, banners, vehicle wraps, and more at impressive speeds. Featuring ultra-low ink costs, bulk ink packs, and innovative features like user-replaceable printheads, the SureColor R5070L ensures remarkable performance and reduces total cost of ownership.

Key Features:

• Breakthrough Resin Ink Technology: Vibrant 6-color inks plus optimizer deliver exceptional print quality with high scratch resistance and immediate lamination for increased productivity.
• Cost-Effective Ink: Dual 1.5L bulk ink packs reduce ink costs to just $0.125 per milliliter, offering an ultra-low total cost of ownership.
• Reliable Color Consistency: Ensures consistent quality for repeat jobs, brand colors, and large applications like wall tiling.
• User-Replaceable Printheads: Designed for minimal downtime with user-replaceable PrecisionCore® printheads for efficient self-serviceability.
• Supports a Variety of Media: Ideal for printing on vinyl, uncoated papers, fabrics, and other specialty materials.
• High-Speed Printing: Produces high-quality prints at 1200 x 2400 dpi resolution, with production speeds optimized for high-volume work.
• Enterprise Software Suite: Streamline workflow and job tracking with Epson Edge® Print and Epson's advanced RIP software.

Ink System:

• UltraChrome® RS Resin Ink: 6-color ink system with optimizer for vibrant and sharp prints.

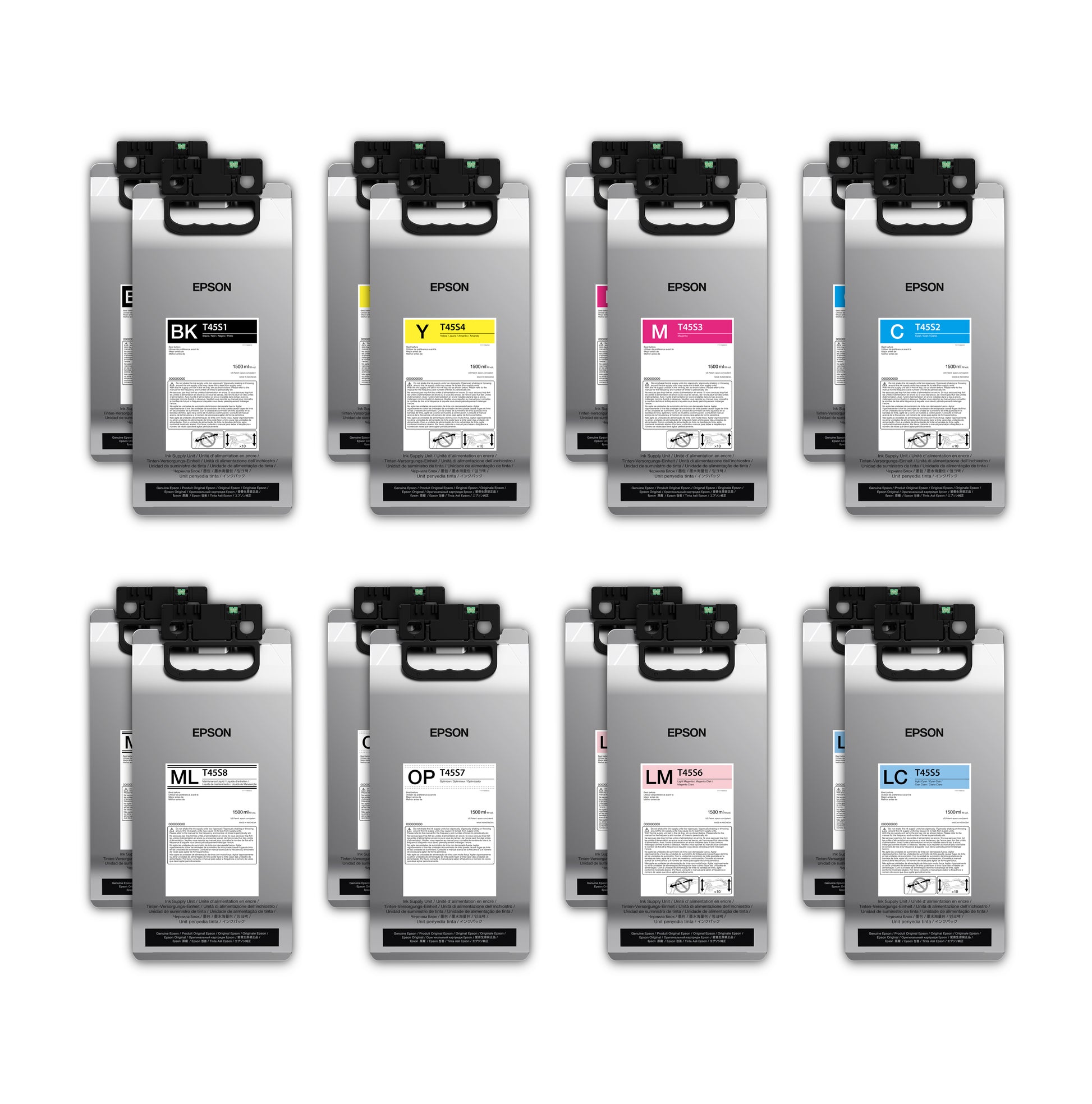

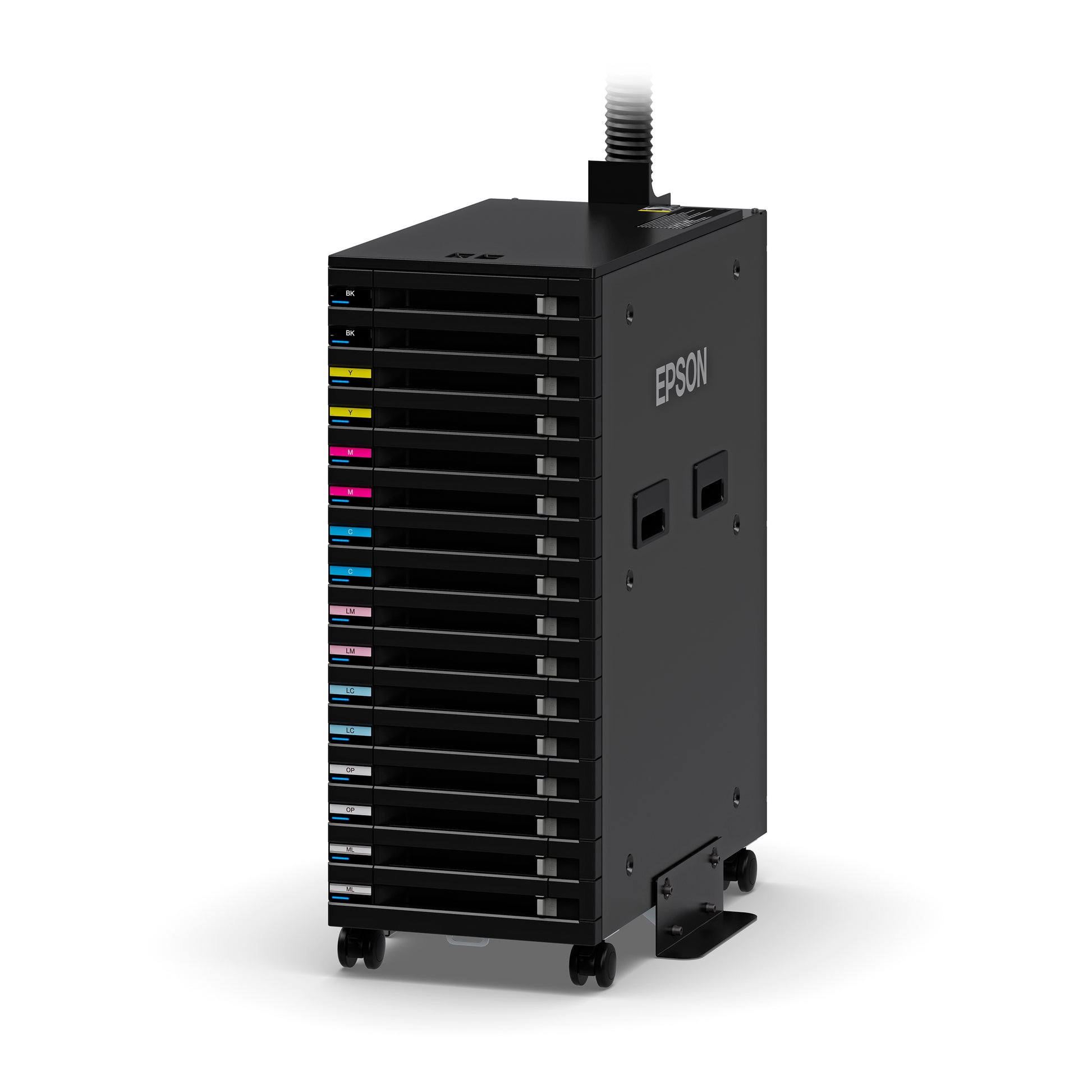

• Bulk Ink Packs: 1.5L tanks per color for reduced ink costs and increased efficiency.

Roll Media Handling:

• Maximum Paper Width: 64"
• Maximum Roll Diameter: Up to 9.8"

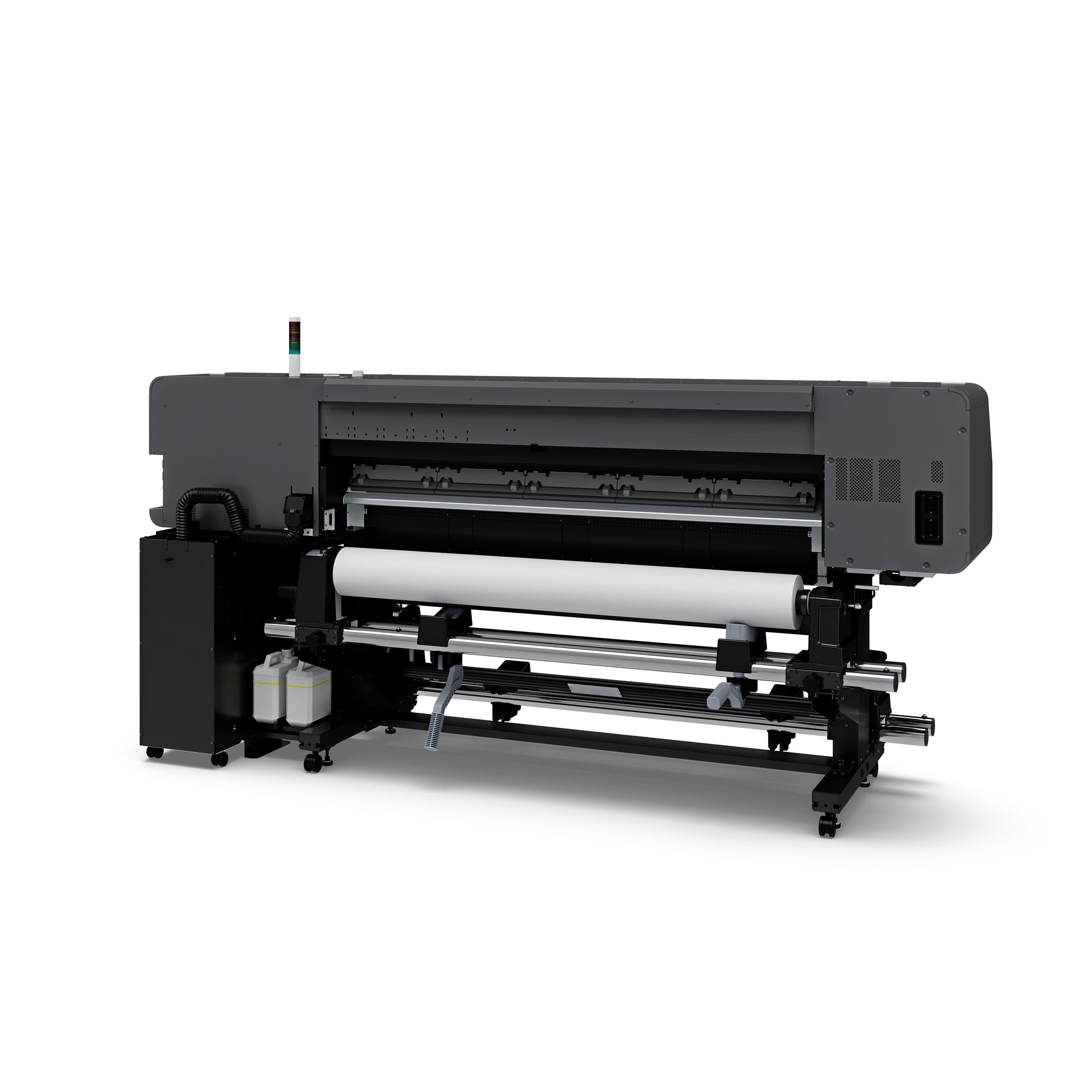

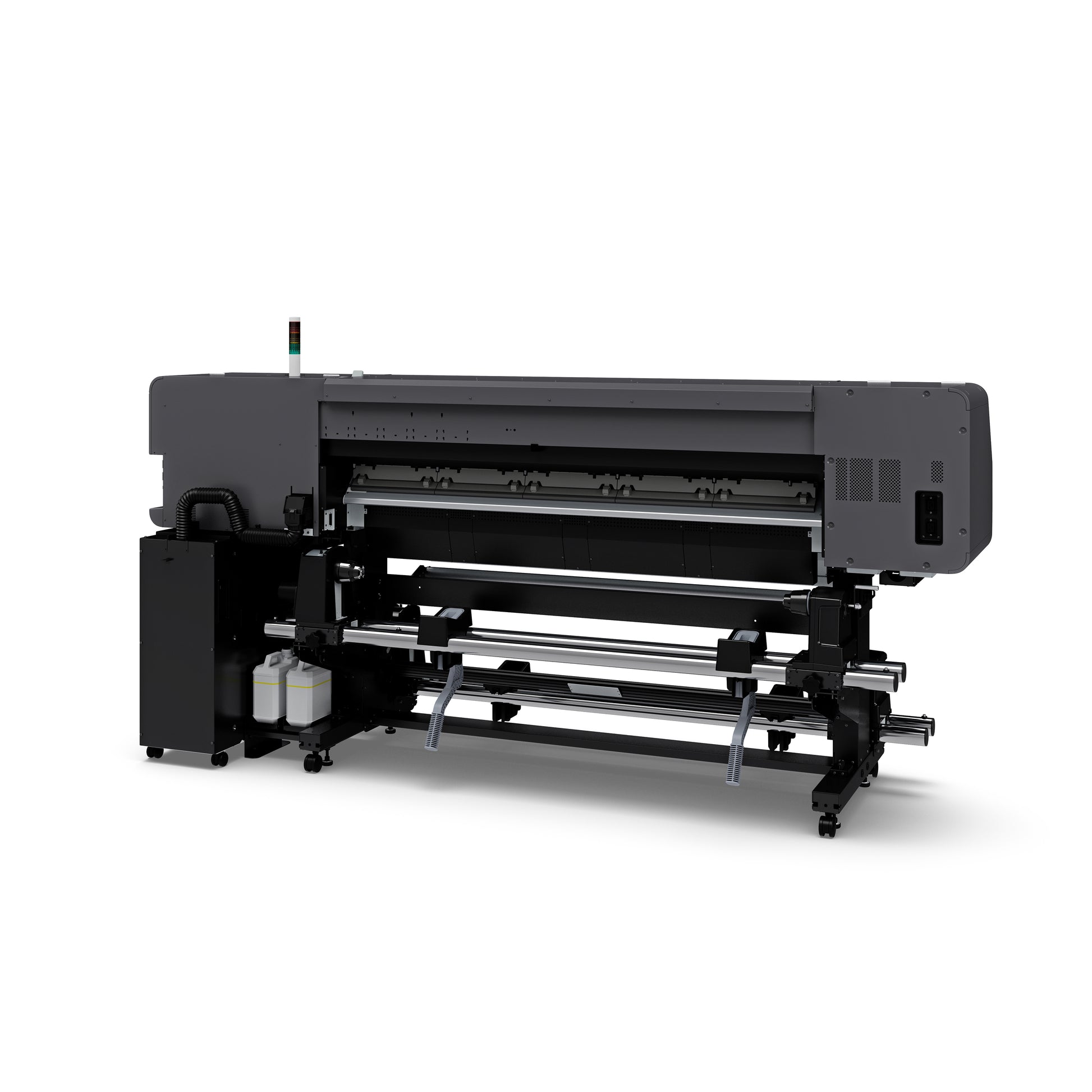

• Automatic Take-up Reel: Ensures easy roll-to-roll operation with tension control.

Printer Specifications:

• Dimensions: 116" (W) x 41" (D) x 70" (H)
• Weight: 990 lbs
• Operating Temperature: 59°F to 86°F (15°C to 30°C)
• Power Consumption: Printing - Approx. 4.6 kW, Standby - Approx. 220 W
• Warranty: 1-year limited warranty, with the option to extend up to 5 years.

System Requirements:

• Operating Systems: Windows® 10 and 8.1
• Minimum PC Specifications: 2GHz CPU, 2GB RAM, 120GB HDD
• Recommended PC Specifications: 3GHz or higher quad-core CPU, 8GB RAM, 500GB SSD

Eco Features:

• GREENGUARD Certified
• WEEE Compliant
• RoHS Compliant
• SmartWay® Transport Partner

Ideal For:

• Vinyl and banner printing
• Vehicle wraps and signage
• High-quality commercial printing
